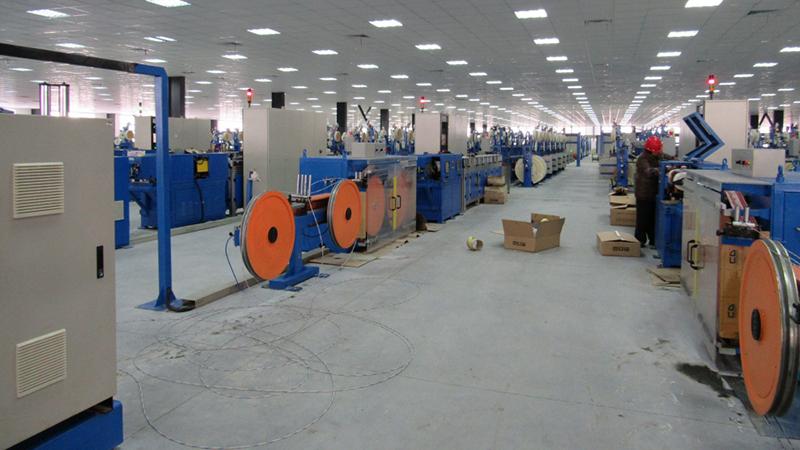

SZ Stranding Line

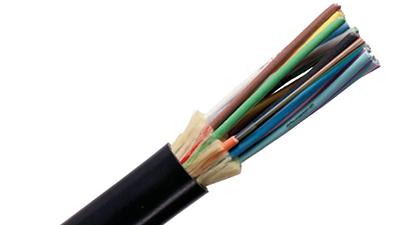

The production line is used to manufacture SZ stranding line. This stranding line design is used for layer stranding of the fiber-optic with high precision tension control. The parameters of the components are set and controlled by the operator via HMI touchscreen. The path of the materials is guided accurately. Each of the position is equipped with pneumatic pre-loaded dancer arm that has minimum friction to maintain the pre-set tension during this process.
Features| Max outer diameter after stranding | Ф25mm |
| Loose tube diameter | (Ф1.5~Ф3.0)mm |
| Production speed | 80m/min |
| Cabling lay length | (45~500) mm |
| SZ stranding angle | (4~16)π |
| SZ stranding rotational speed | max 1600rpm |
| Blinder yarn rotational speed | max 4000rpm |
| Stranding pitch | (15~80)mm |
| Production length | less than 50m |
| Deviation | ≤2‰ |
| Additional wear | ≤0.02db/km |
| Total power | 50KVA |
| Compressed air pressure range | 0.5~0.6MPa |
| Operate direction | pay-off -> take-up |
- Ф1250mm gate-type auto pay-off machine
- Ф800mm horizontal type dual tension reel

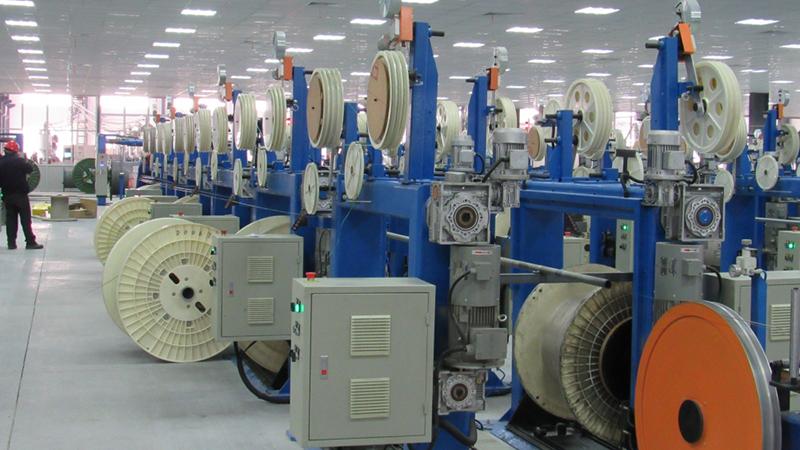

- Ф800mm buffer tube pay-off unit
- FRP filling
- SZ stranding unit (Differential type)
- Dual concentric yarn unit (high speed pot type)
- Pressing resistance torque
- φ800 mm dual traction unit (including meter counter)
- Ф800mm horizontal dual tension wheel

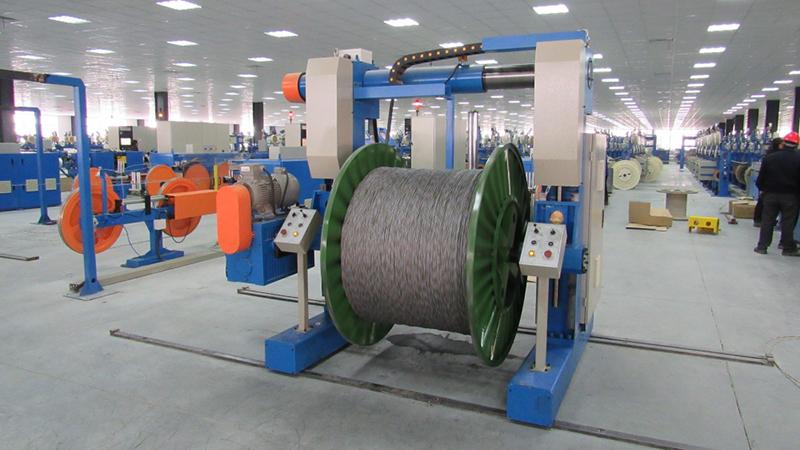

- 1600 floor rail portal take-up traverse machine

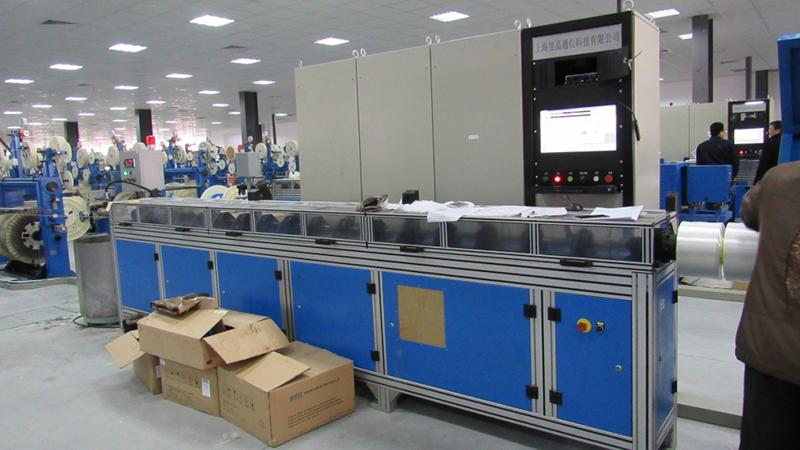

- Electrical control system
