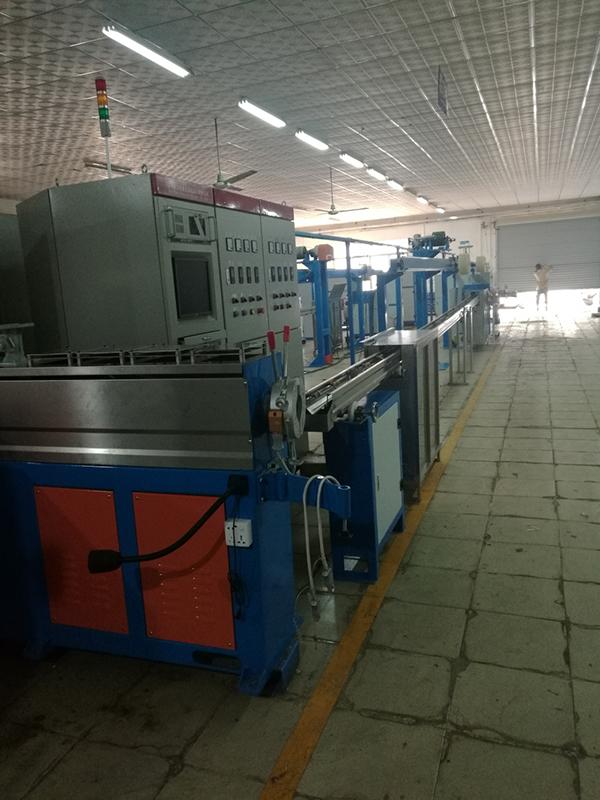

FTTH optical cable extruder line
FTTH optical cable extruder line is used to extrude FTTH optical cable, indoor optical cable
Sheath material: LSZH, HDPE , PBT or NYLON
Technical Parameter| Production speed | 60-100m/min |
| Steel wire diameter | φ1.0mm~φ1.6mm |
| Pay-off reels | 1 reel |
| Pay-off tension | 10~80N |
| Pay-off reel size | φ630~800mm |
| FRP diameter | φ0.4mm-φ1.2mm |
| FRP pay-off reels | 2 reel |
| FRP pay-off tension | 4~10N |
| FRP pay-off reel size | φ400mm |
| Fiber pay-off reels | 4 reel |
| Fiber pay-off tension | 0.3~1.5N |
| Fiber pay-off reel size | 25km, 50km reel |
| Take-up tension | 5~20N |
| Take-up reel size | φ400~500mm |
| Additional loss | ≤0.02db/km |
| Production line length | 40m |
1. 800mm steel wire pay-off device
2. Steel wire pay-off tension device
3. FRP pay-off device

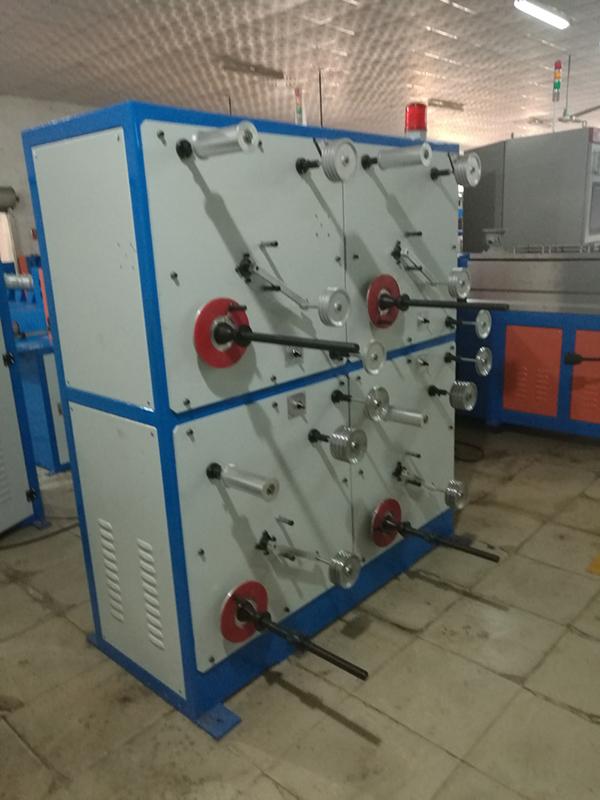

4. Fiber pay-off device

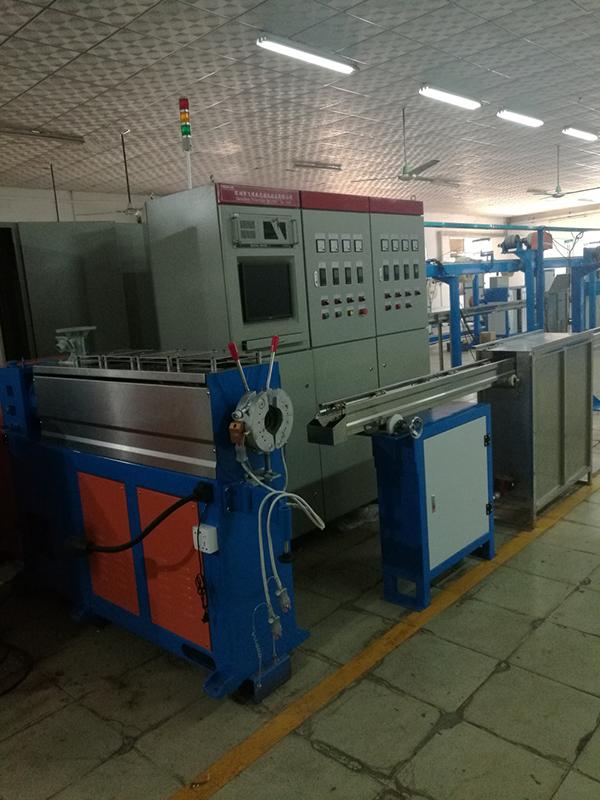

5. 50mm extruder
6. Hot water tank
7. Cold water trough
8. Drying device
9. Diameter gauge
10. 630mm capstan
11. Accumulator
12. Double reel take-up
13. Electric control system
