Silicon Rubber Extrusion Line

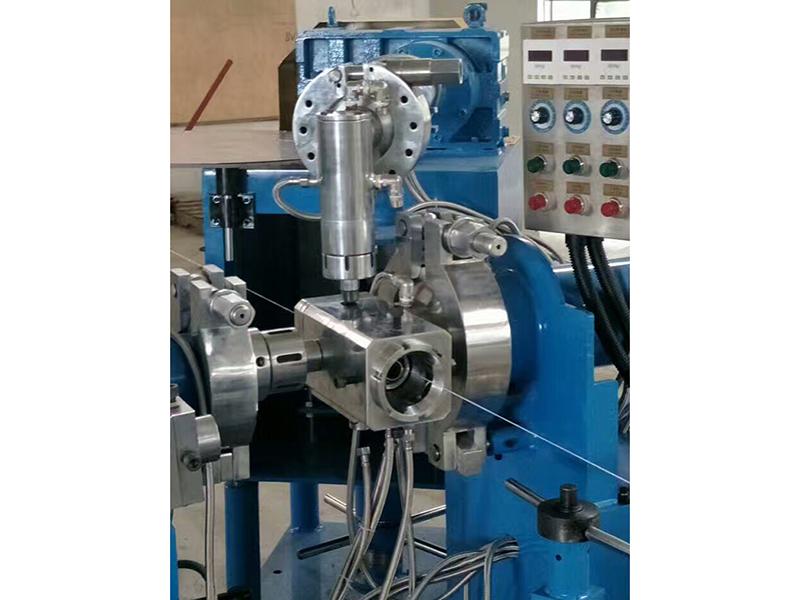

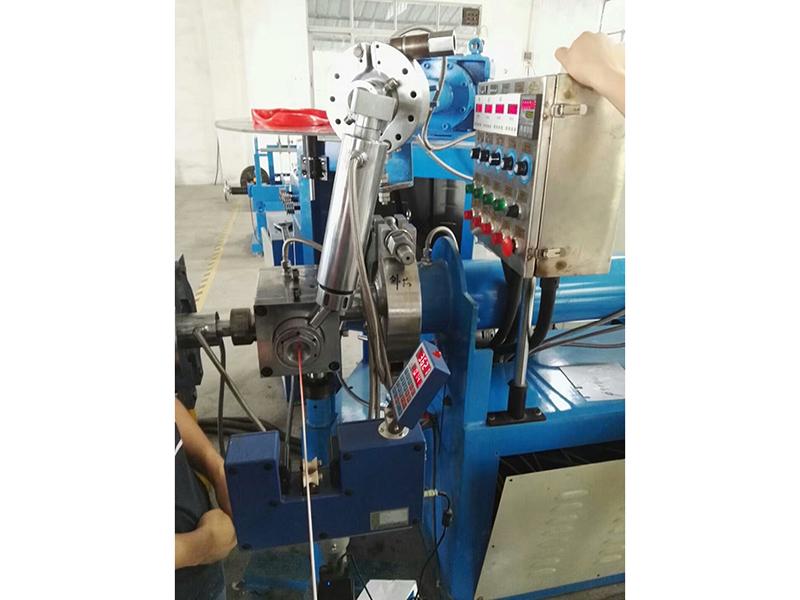

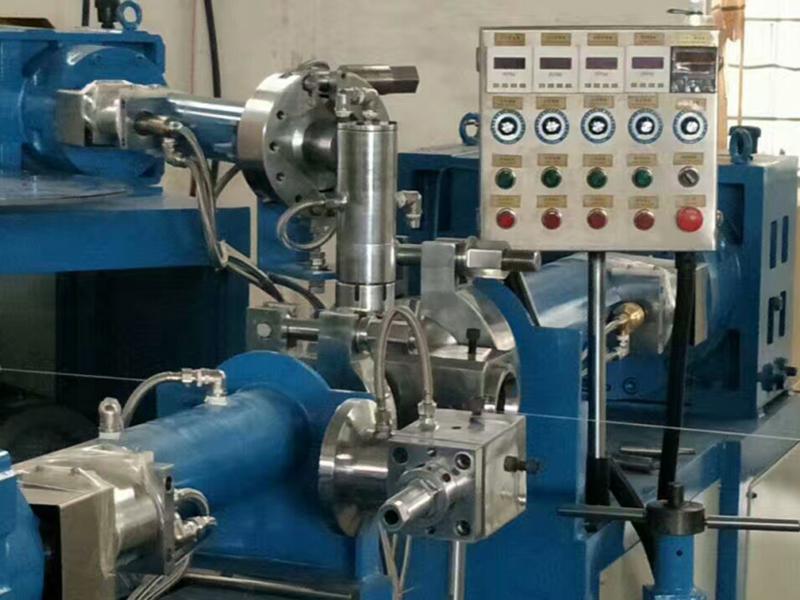

Silicon Jacket Extrusion Line
Application

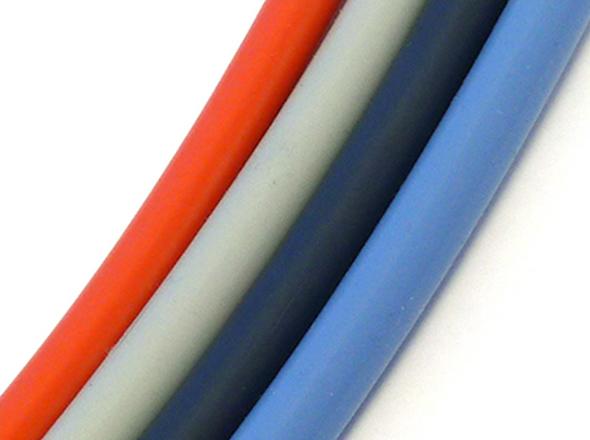

Results from silicon jacket extrusion

Silicon rubber extrusion line mainly used in extrusion of silicon jacket with various colors that are suitable for refractory cable. The silicon jacket extrusion line is applicable in extreme conditions with temperature ranges from -55℃ to 260℃ without losing its physical properties as well as having flame retardancy. It is a low smoke cable.

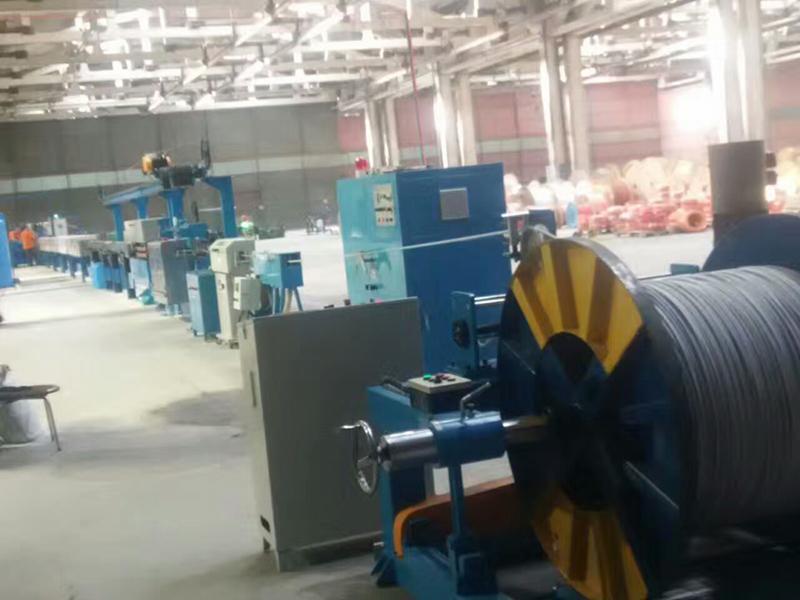

Table below shows cable production line we manufactured in the past
Model 45 65 80 90
Extrusion output 30kg/h 80kg/h 135kg/h 180kg/h
Screw diameter (mm) 45mm 65mm 80mm 90mm
Pay-off bobbin dimensions (mm) 300-400mm 400-630mm 630 – 1000mm 800-1250mm
Finished outer diameter (mm) 0.8-5.0 1.8-8.0 3.0-25 8.0-35

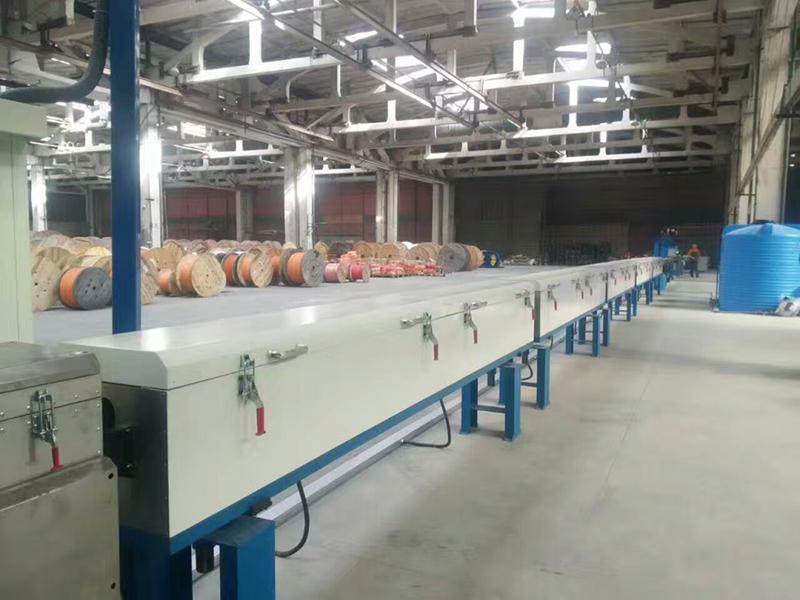

Vulcanize length 12M 16M 24M 28M
Heating power 36KW 48KW 72KW 84KW
Line speed 10-200m/min 10-200m/min 5-50m/min 5-50m/min
Take-up bobbin dimensions (mm) 400-630mm 400-630mm 630-1000mm 800 – 1250mm
