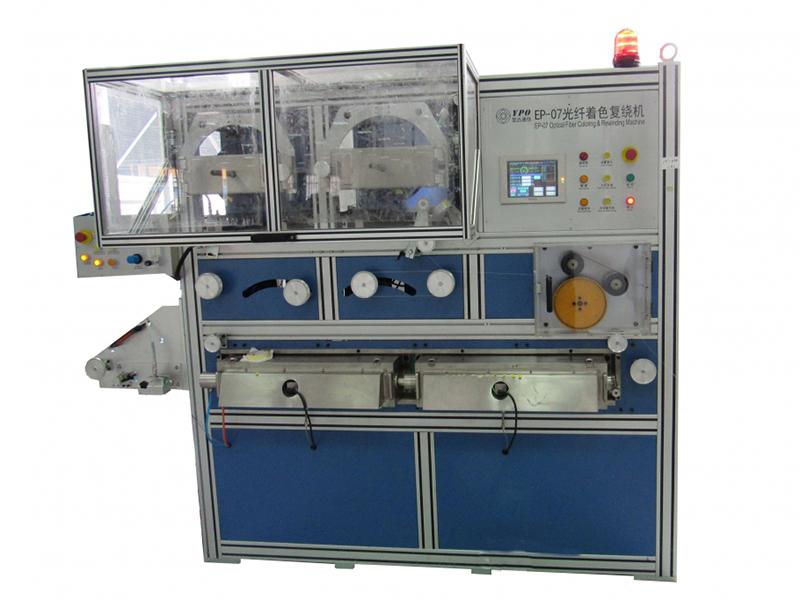

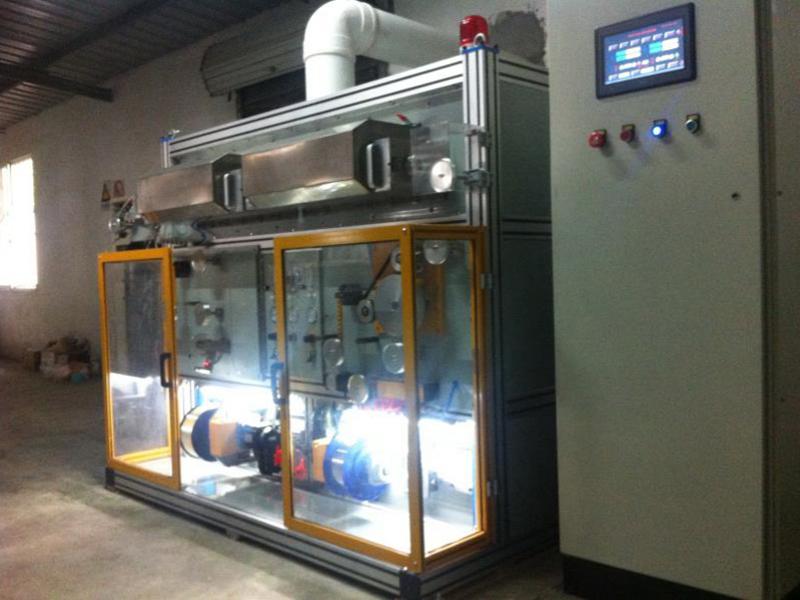

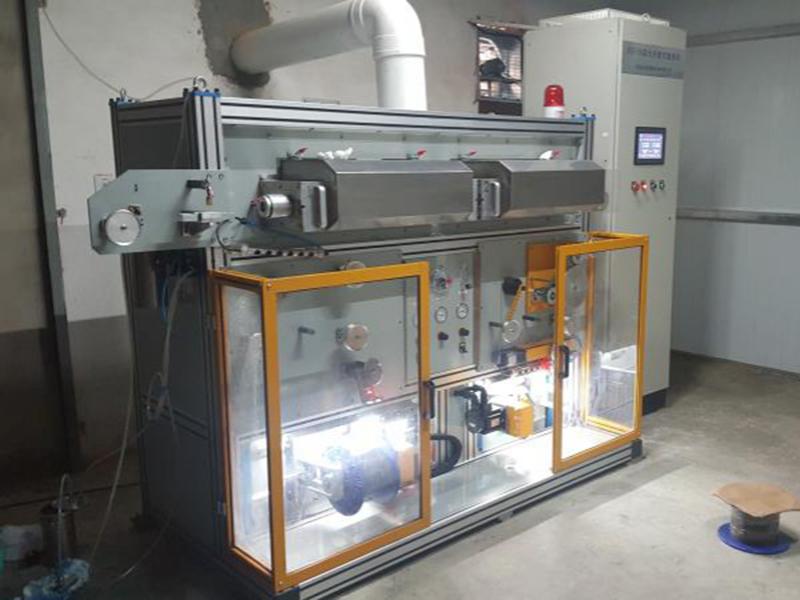

Optical Fiber Coloring Rewinding Line

The optic fiber coloring rewinding line is designed especially for use in coloring the surface of the bare fiber so that the fibers are identifiable in the beam tube. In addition, the machine is able to rewind the optic fiber. The equipment implements programmable logic control module PLC with high-precision servo motor as combination to achieve precise positioning and control during the coloring process of the optic fiber.

• Structure speed: 2500m/min
• Coloring speed: 2200m/min
• Rewinding speed: 2300m/min
• Coloring thickness: 3—5um
• Fiber tension: 0.3-1.5 ± 0.05N
• Traverse pitch: 0.1-1.0 ± 0.01mm
• Metering accuracy: ≤ 1%
• Additional losses: ≤ 0.02db/km
• Nitrogen purity: ≥ 99.999%
• Compressed air :0.5Mpa
• Environmental requirements:20-25℃
