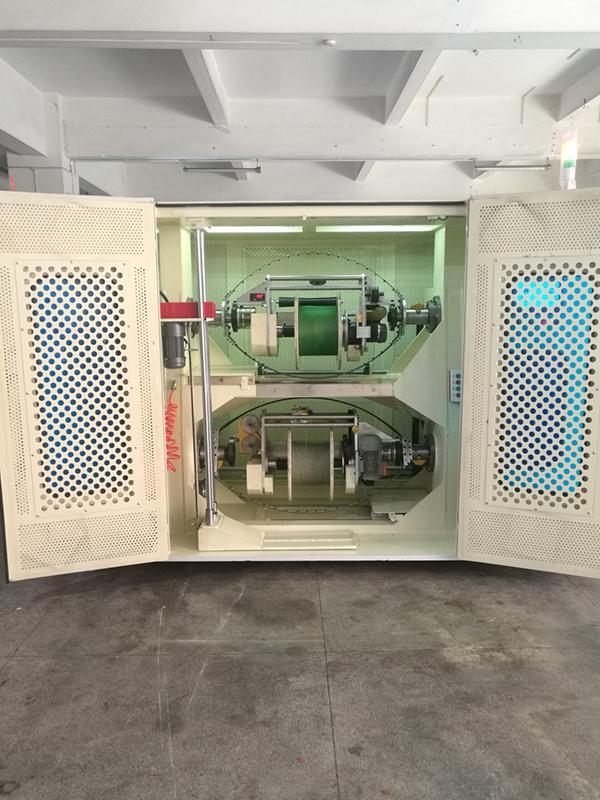

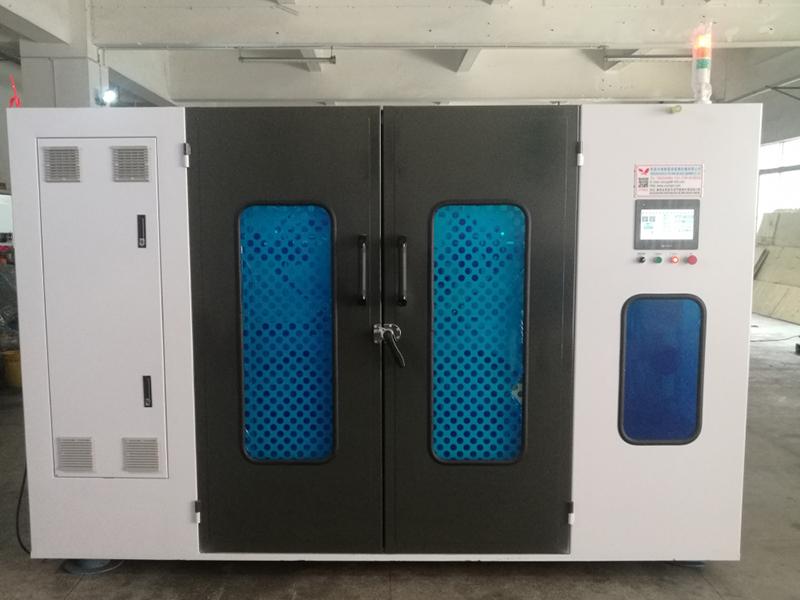

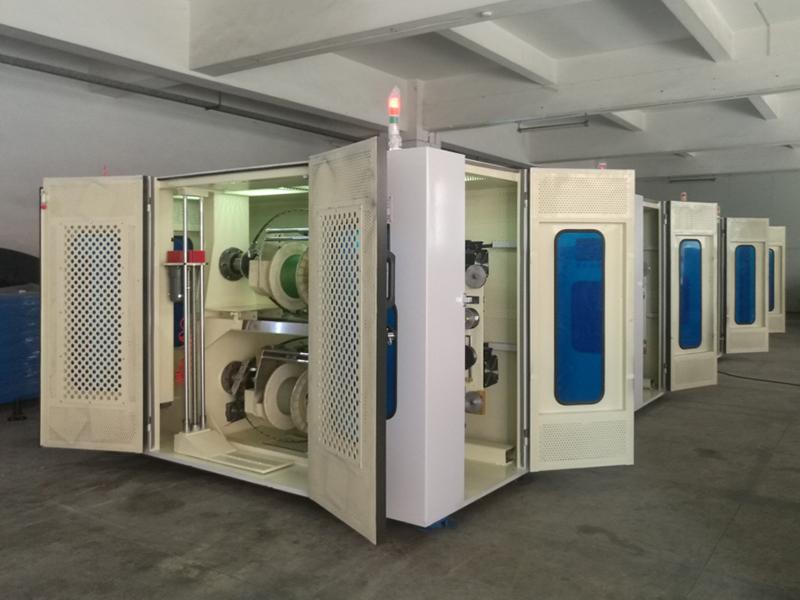

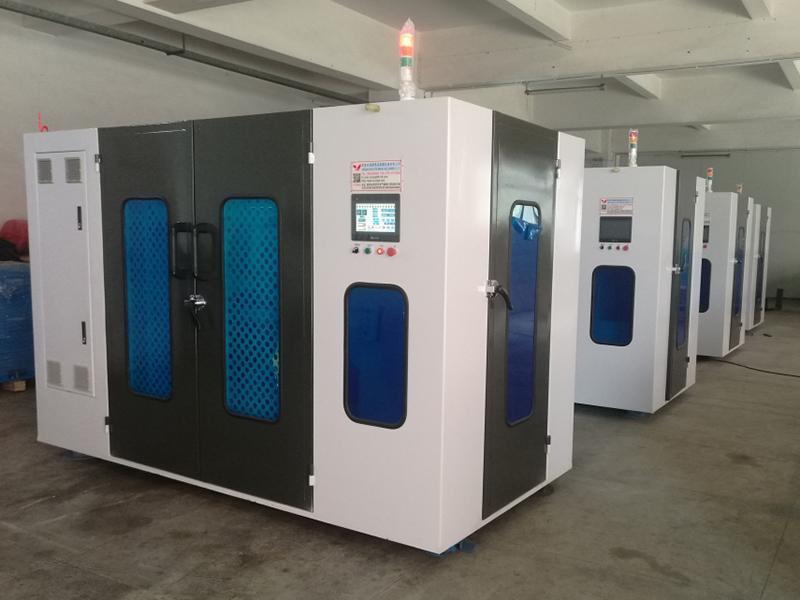

SUPER MACHINERY has extensive experience in designing cable twisted pair equipment. This model of twist twinner has reel with diameter 500mm, applicable for twisting LAN cable (CAT5 cable, CAT5E cable, CAT6 cable, CAT7 cable), insulation core wire, telecommunication cable, etc.

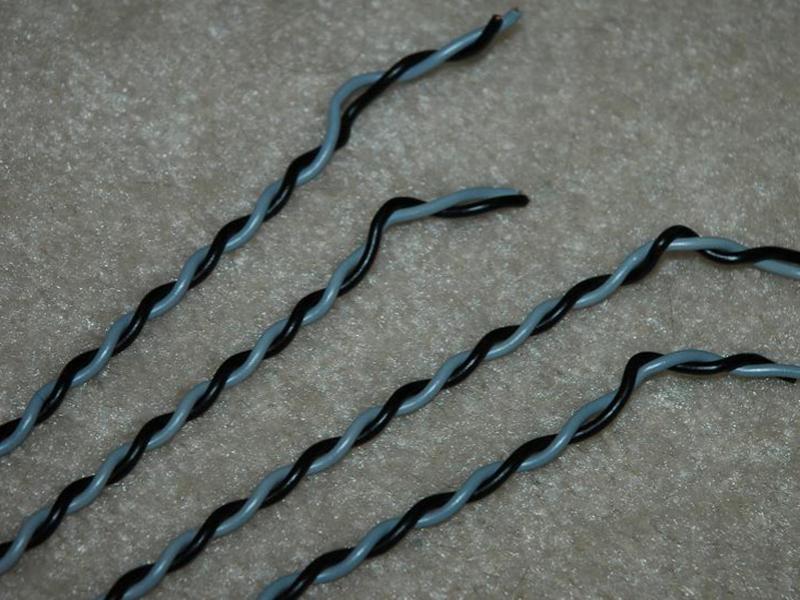

Effect after twisting

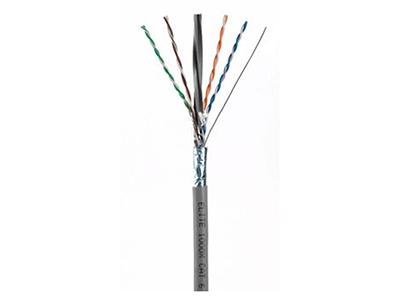

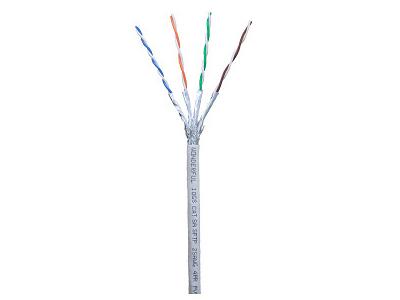

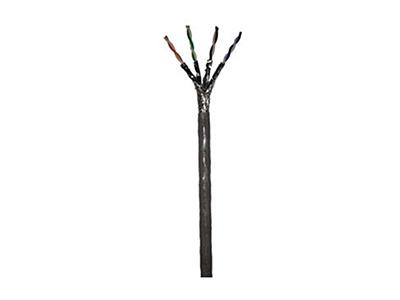

CAT5 cable , CAT6 cable
CAT5 cable , CAT6 cable
CAT5 cable , CAT6 cable

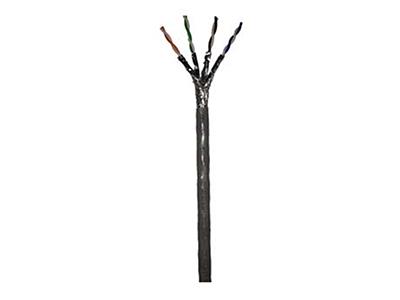

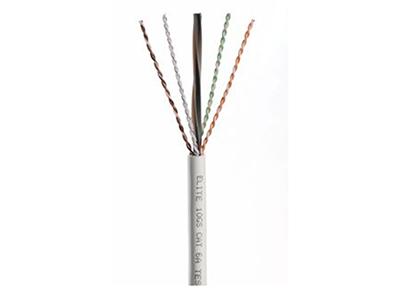

CAT7 cable
CAT7 cable
Parameters
Pay-off reel diameter: 500mm
Take-up reel diameter: 500mm
Single wire diameter: max 1.5mm
Rotation speed: max 2000rpm(6000TPM)
Line speed: max 120m/min
Back-twist ratio: 0 – 100%
Pitch range: 10 – 60mm
Pitch tolerance: ±2%
Main power: 5.5KW
Features
1. This is a new model of cable twist twinner equipment with its own twist-back function to avoid deformation results from the self-twisting when two conductors are twisting which is more practical compared to the traditional back-twisting machine + twister. The maximum speed reaches 6000TPM/min (increase 50%) and take up less than half of the space compared to the traditional machine, effectively save up the space of the factory.
2. Users can set the rate of back-twisting on their own from range 0 to 100% according to the requirement of the cable material type.

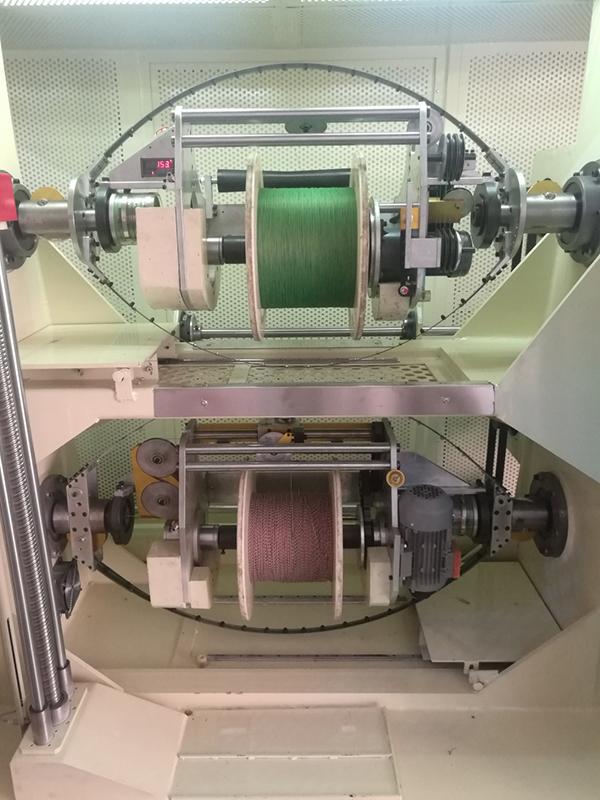

3. On the basis of increasing the production as well as reducing the floor area, this equipment has compact design with two reel at the top and bottom, greater working efficiency.

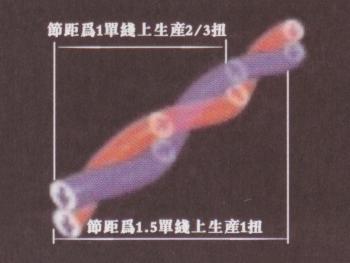

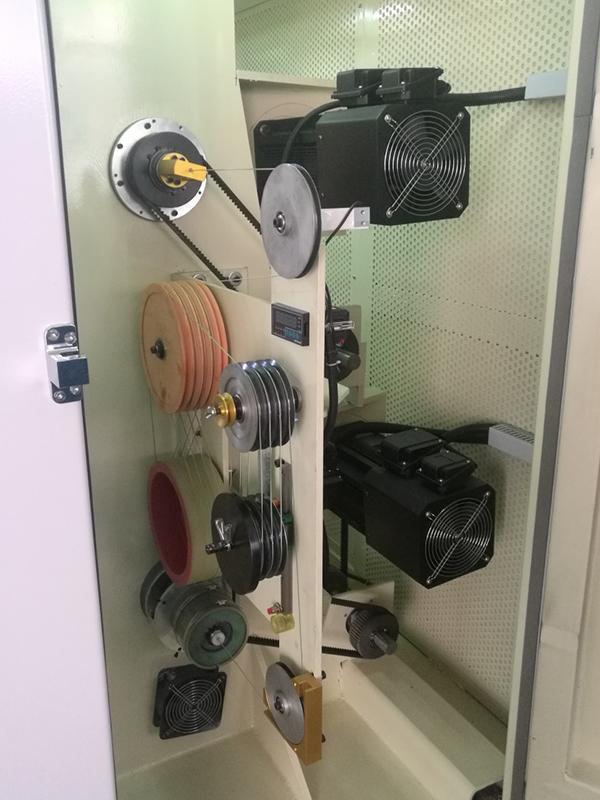

4. The twinner adopts triple twisting design with 1.5 times faster speed than general double twisting machine while it is at back-twisting rate of 33%.

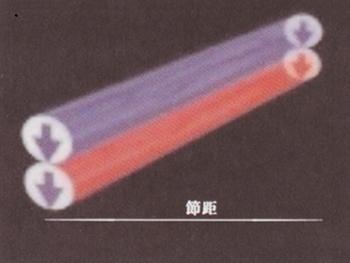

Single line of the pay-off reel
Product after pay-off

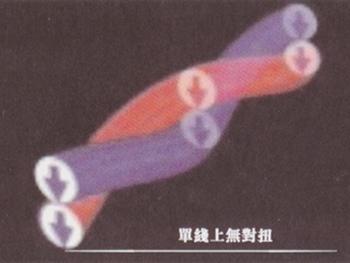

Final triple twist

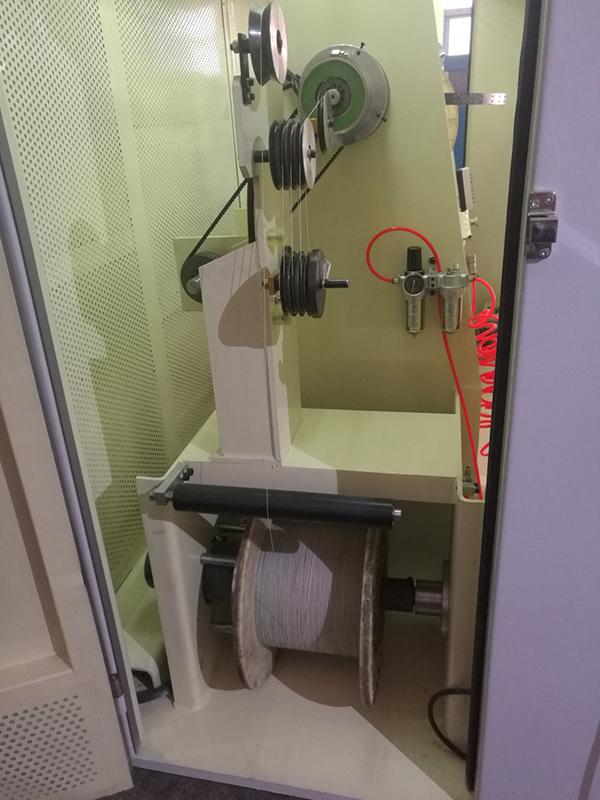

5. The tension of the take-up line is fully controlled by force. Constant tension control is maintained from the empty to the full reel.
6. Low power consumption, total power of the equipment is 15kw, one third lower power compared to the traditional back-twisting + twister, reduces the production cost greatly.
7. Easy operation and fast line speed.
8. The tension of the take-up line is fully controlled by force. Constant tension control is maintained from the empty to full reel.
9. Adopt PLC control system to automatically adjust the twisted wire pitch by the servo motor, replacement of taper gear is unnecessary, more accurate operation.
