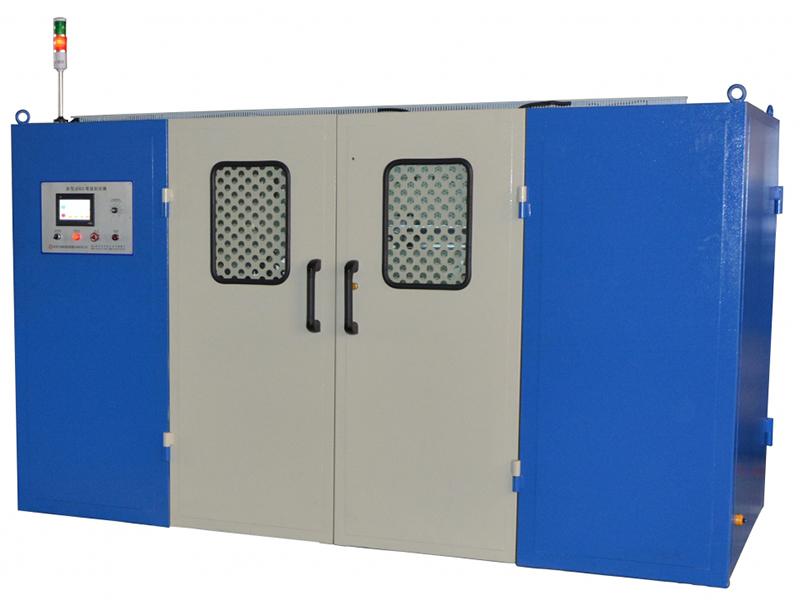

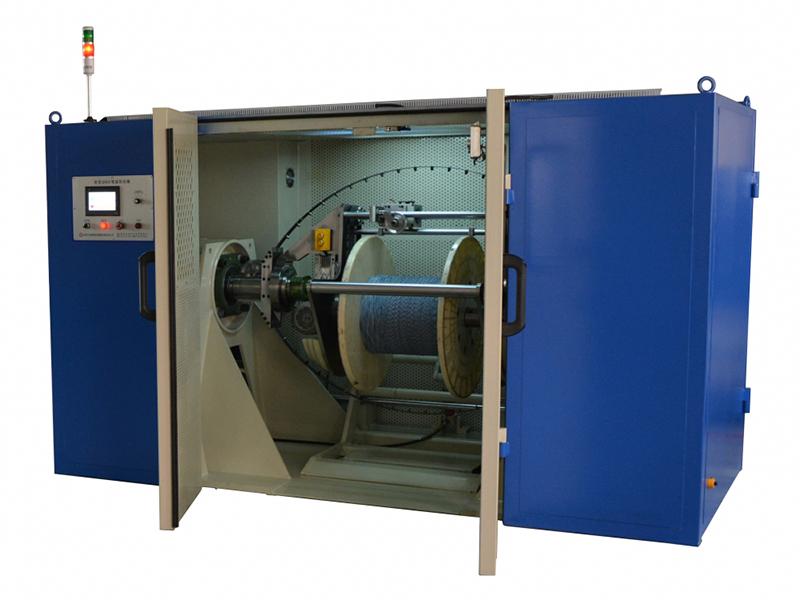

Double Twist Bunching Machine, 800-1250mm Spool

Application

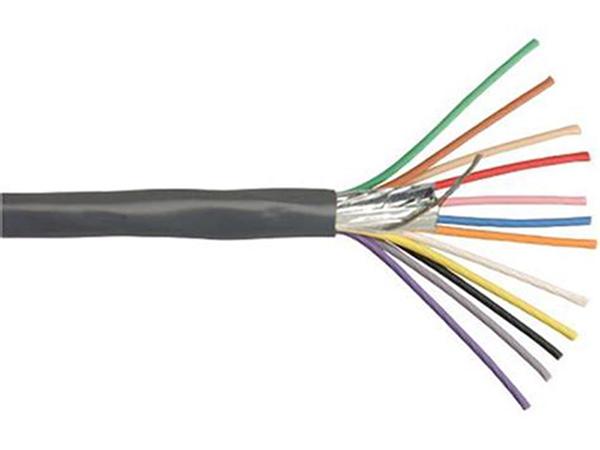

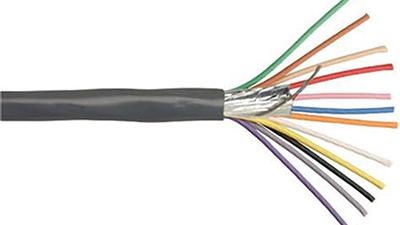

Effect after stranding

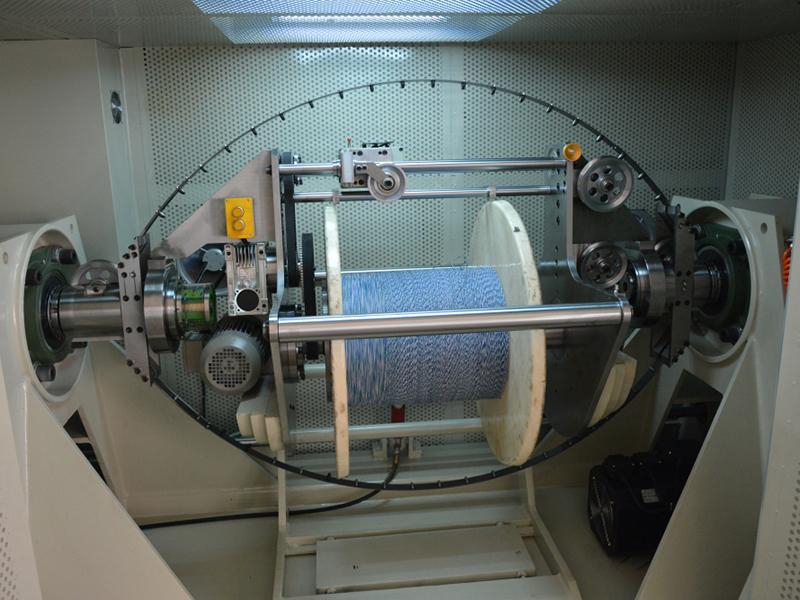

The double twist bunching machine can strand multiple electronic wires and data cables with supporting reel diameter 800-1250mm. The whole system is controlled by the PLC system including twist pitch setting automatically and autonomic tension controlled from the empty to full reel.

Features
  • Bobbin up and down: Electro-hydraulic
  • Lay length: 30-300mm
  • Twist direction: S/Z
  • Bobbin lock method: Pneumatic
Parameters
Model 800 1000 1250
Single wire Diameter Core wire: 0.5-4.0mm Core wire:1.0-5.0mm Core wire:2.0-6.0mm
Twisted diameter Max.10mm Max.12mm Max.15mm
Brake Electromagnetic brake Electromagnetic brake Electromagnetic brake
Main power 20HP 30HP motor 40HP
Rotation speed 1200rpm 1000rpm 800rpm
Take-up reel size 800mm 1000mm 1250mm
