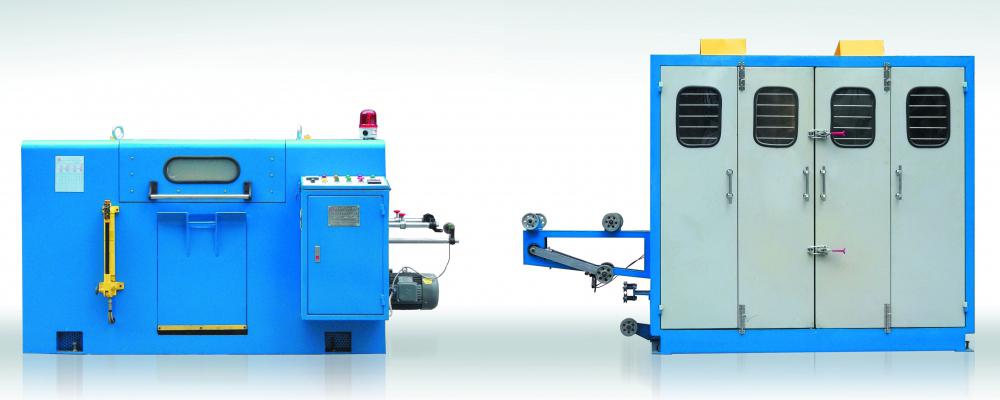

Double Twist Twinner with Vertical Back Twister

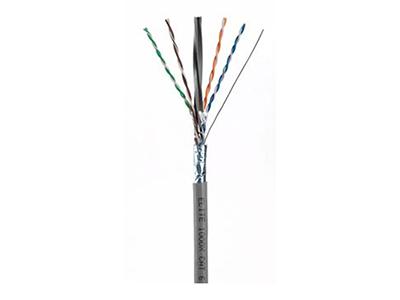

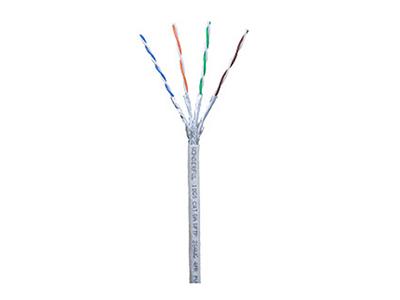

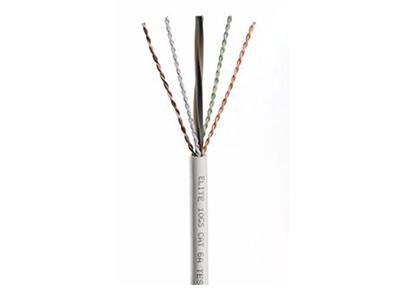

Double twist twinner with vertical back twister is applicable for LAN cable including CAT5 cable, CAT5E cable and CAT6 cable. The suitable single line twisting materials include copper, pair-wire, flexible coppers, aluminum, etc.

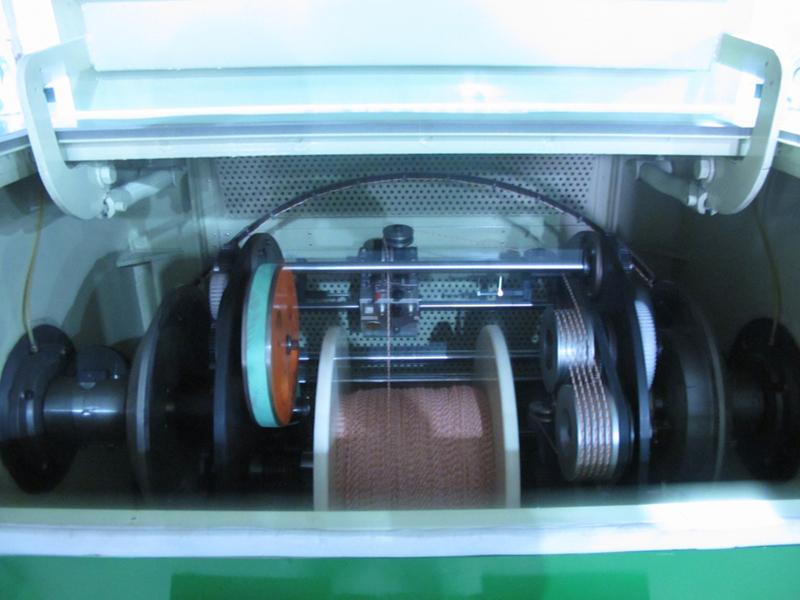

Internal part of the twist twinner
Twist twinner parameters

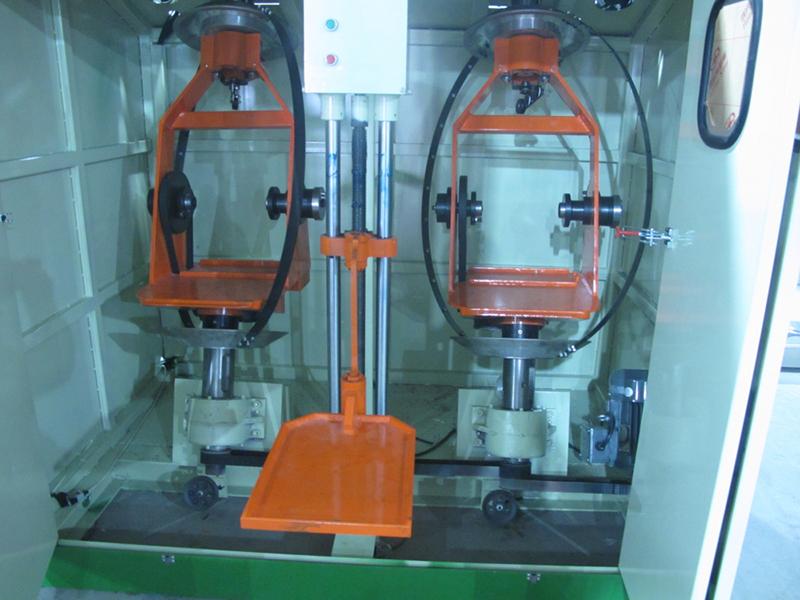

Internal part of the back-twister
- Core diameter: max Φ1.5mm
- Twisting diameter: max Φ3.0mm
- Pitch: 6-60mm
- Rotational speed: max 2000rpm
- Take-up tension: Magnetic powder clutch
- Bobbin up and down: hydraulic
- Diameter of take-up reel: ￠500MM
- Pay-off reel diameter: Φ500MM
- Rotational speed: max 1000RP
- Line diameter: max Φ1.5MM
- Pay-off tension: 4-40N
- Reel movement: electrical
- Back-twist ratio: max 60% (adjustable)
- Pre-back twisting beforehand, significantly improving the impact on the line materials while twisting the core wire.
- The vertical back-twister save more land area compared to the horizontal back-twister, suitable for factory with smaller size.
- Feedback linkage with main pay-off and the twisting machine through tension arm swinging. The linkage system will act to suspend the working equipment when any of the equipment lagging and report error to ensure safety usage.
- The back twister pay-off and twist twinner is controlled by PLC control system to set the back-twist ratio with maximum 60%.
- The equipment works in fully-closed situation. High efficiency and the safety of the operators is assured.
