Single Twist Cabler / Strander

Single Twist Cabler / Strander
Application

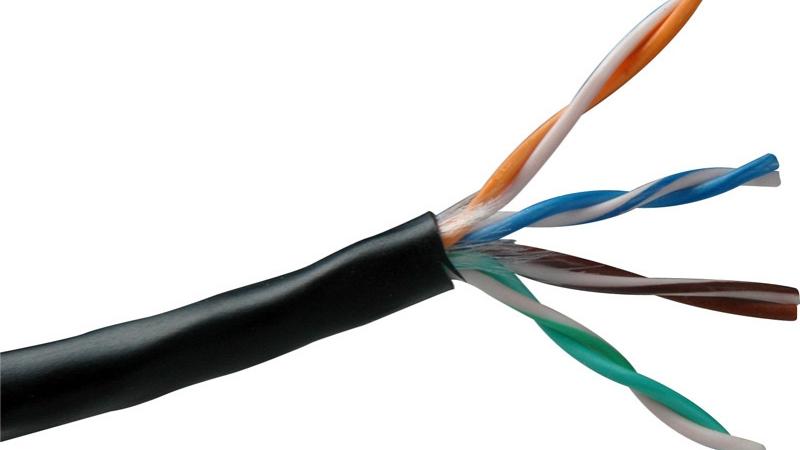

Effect after stranding

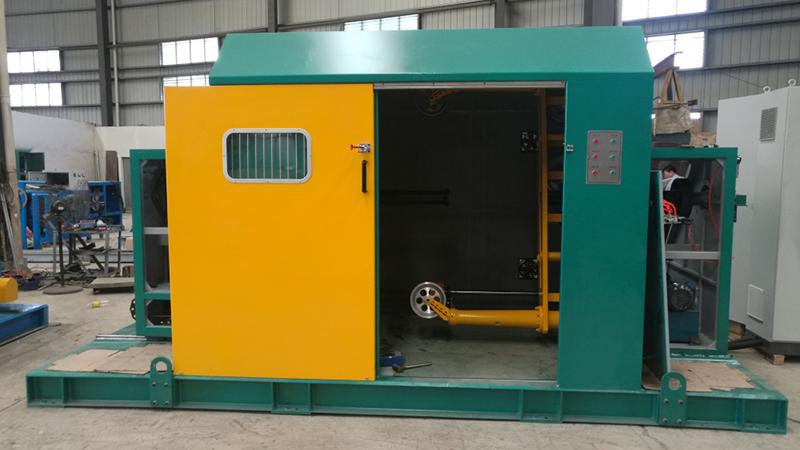

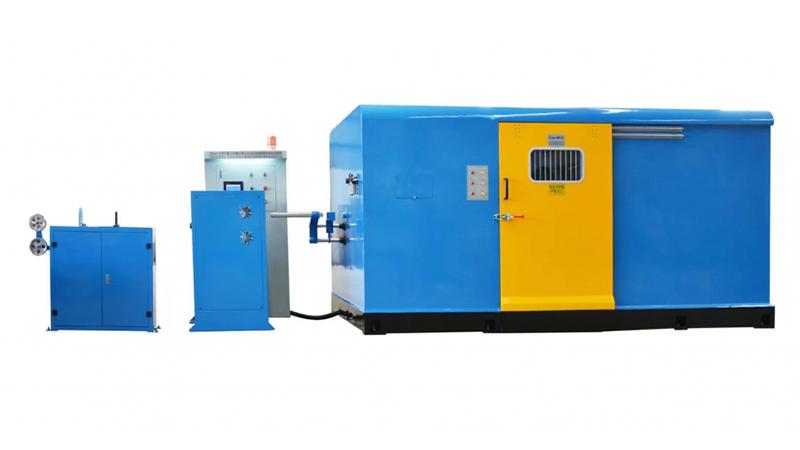

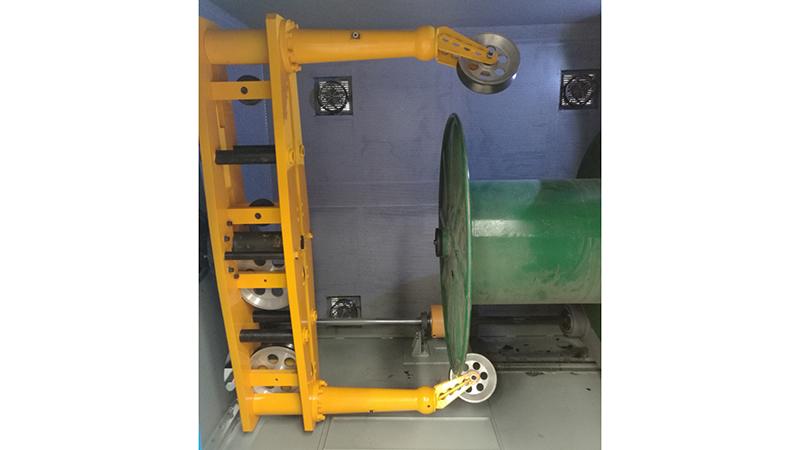

Cantilever single stranding machine is used to strand multiple insulated core wire in the meantime taping the wire. It is suitable for bobbin with diameter 630-1250mm, applicable for cables:
  • Unshielded and shielded twisted pairs
  • Premise distribution and communication cables
  • Telecommunication cables
  • Video cables
  • Data cables
Features
  • Twist direction: S.Z
  • Taping method: Concentric or eccentric
  • Taping speed: Max 2500rpm
  • Up and down bobbin: hydraulic
  • Brake: Pneumatic disc brake
  • Traverse: Traverse by bobbin reciprocating movement
Parameters
Machine type 630 800 1000 1250
Take-up reel size 630mm 800mm 1000mm 1250mm
Single wire diameter 0.6-4.0mm 1.0-6.0mm 2.0-8.0mm 3.0-8.0mm
Finished twisted diameter Max 15mm Max 20mm Max 25mm Max 30mm
Lay length 20mm-200mm 20-250mm 30-350mm 30-400mm
Rotational speed Max 1000rpm Max 800rpm Max 600rpm Max 550rpm
Power 15HP motor 20HP motor 25HP motor 30HP motor
