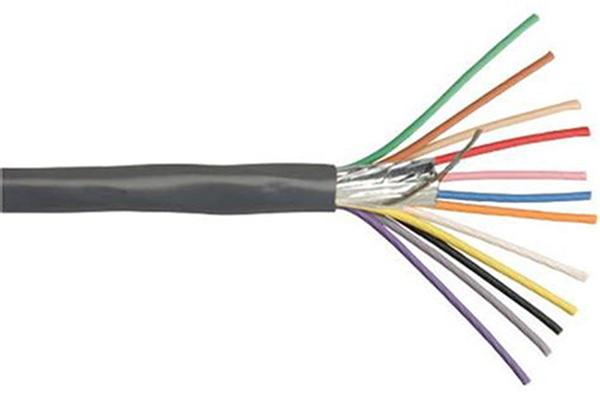

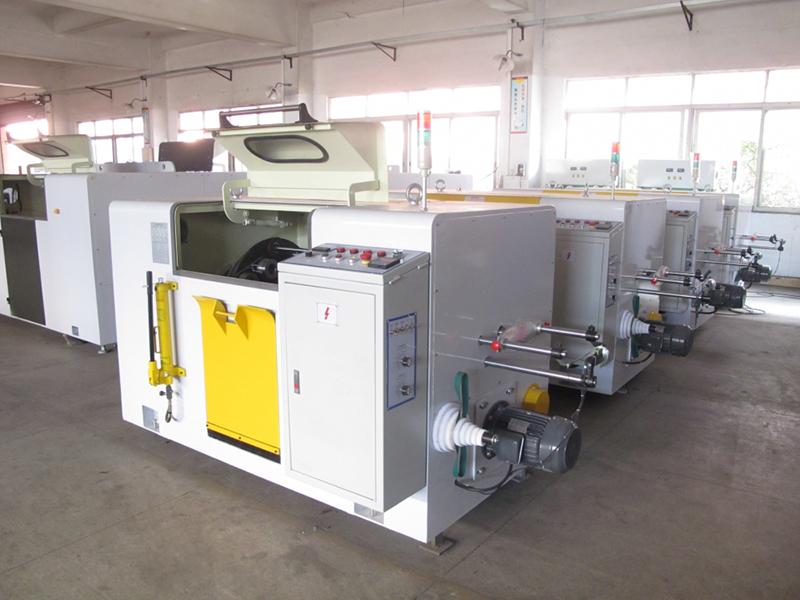

The double twist bunching machine can strand 7 or more bare and plated wire such as copper wires, silver plated wires, tinned wires, enameled wires, copper clad steel wires, copper clad aluminum wires, etc. It is suitable for bundles of copper wires such as computer cable, earphone cable, electronic wire, power cord, a telephone cable and car cable. The diameter of the supported reel is 300-800mm.
ParametersMachine model | Φ300 reel | Φ500 reel | Φ650 reel | Φ800 reel |
Single wire diameter (mm) | 0.05-0.28mm | 0.08-0.45mm | 0.2-0.1.0mm | 38-1.2mm |
Twisted section area(mm2) | Max.0.5mm2 | Max.2.5mm2 | Max.6mm2 | Max.8mm2 |
Twist pitch (mm) | 4.36 - 17mm | 4.22 – 39.64mm | 11.15 – 100mm | 22.51 – 153.32mm |
Rotating speed (rpm) | Max.3000rpm | Max.2200rpm | Max.1600rpm | Max.1200rpm |
Power (KW) | 2.2KW | 4KW | 7.5KW | 11KW |
Noise index | Below 75db | Below 75db | Below 75db | Below 75db |
Machine dimension | 2020*1100*1070mm | 2325*1300*1290mm | 3415*1750*1450mm | 3673*1950*1650mm |
Net weight (KG) | 1000KG | 2000KG | 3000KG | 4000KG |
DONGGUAN SUPER MACHINERY CO,LTD.
Add.: No. 6, Houhu Road, Huangcun Industrial Zone, Humen Town, Dongguan City, Guangdong Province
