Sheath extrusion

Application

Suitable for extruding jacket of lan cable and data cable

Parameters
  • Finished OD: Φ2-Φ12.0mm
  • Extrusion output: 150kg/h
  • Extrusion material: PVC, LSZH
  • Wire concentricity degree: 95% above
  • Line speed: max.300m/min

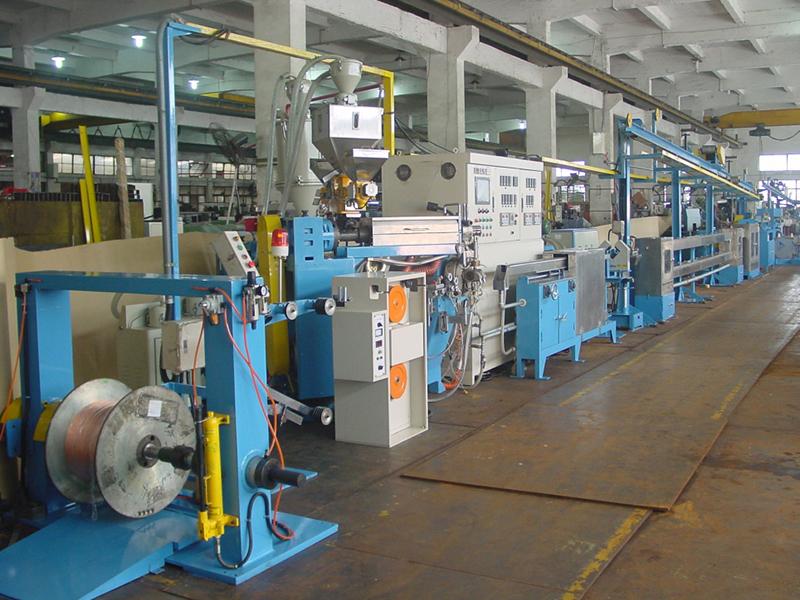

Line configuration

1. 800mm driven pay off
2. Tension dancer wheel
3. Straighten platform
4. 70mm extruder
5. Automatic hopper And feeder
6. Constant warm water tank
7. Diameter gauge

8. Cooling water trough
9. Capstan device
10. Cable accumulator
11. 15KV high frequency sparker
12. Meter counter
13. 1000mm take-up
