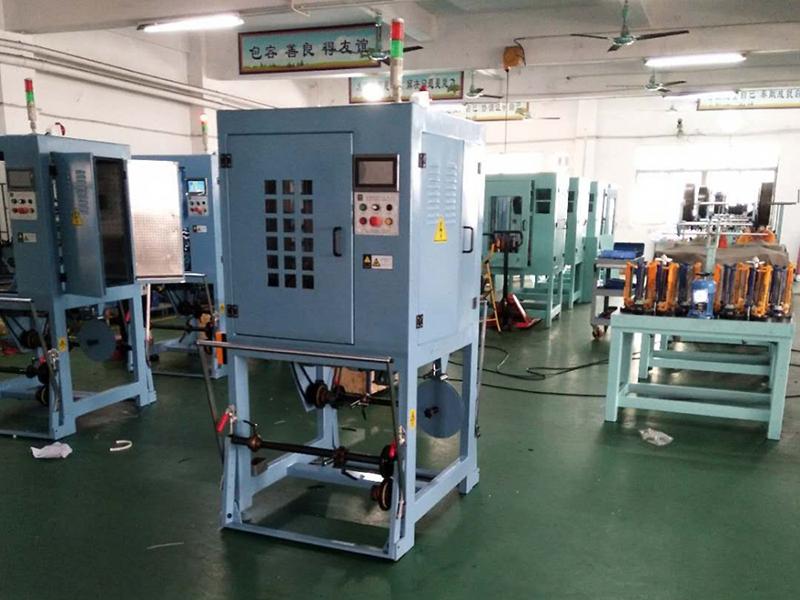

Shield braiding


Application

Suitable for braiding and shielding lan cable and data cable

Parameters
Model 16-spindle 16 24-spindle 24
Braiding method 2 overlap 2
Braiding direction Vertical
Spindle number 16 (8, 8) 24 (12, 12)
Spindle dimension 80*22*80mm 75*22*70mm
Spindle speed 50-150rpm 30-100rpm
Braiding pitch 3.2-35.5mm 6.4-65mm 13.3-134.5mm
Braiding cable diameter Max 14mm Max 24mm
Production speed Max 585m/hour Max 800m/hour
Main motor power 1.5kw 3kw
Dimension 1200x1390x2350mm 1500x1800x2650mm
Weight 854kg 1258kg
