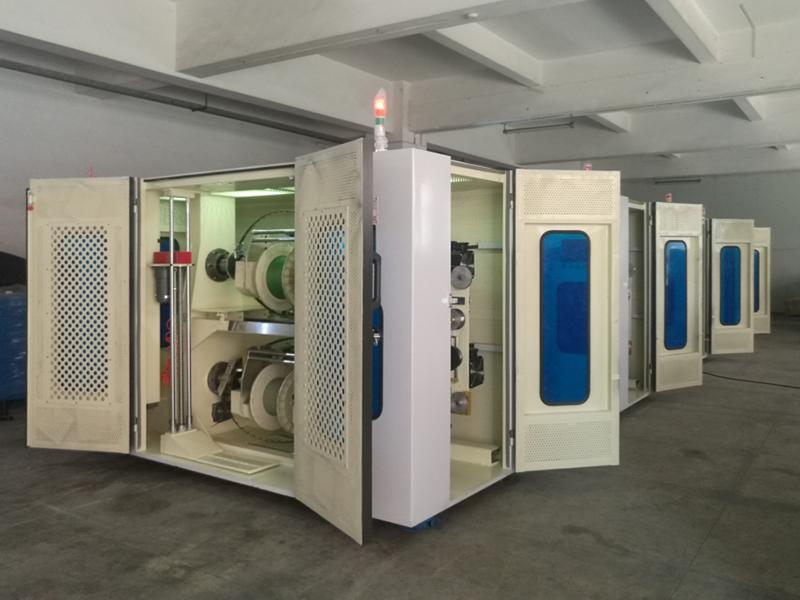

Pair-twisting

Application

Suitable for pair-twist cat5e, cat6, cat7 insulation core wire

Parameters
  • Pay-off reel diameter: 500mm
  • Take-up reel diameter: 500mm
  • Single wire diameter: max 1.5mm
  • Rotation speed: max 2000rpm (6000TPM)
  • Line speed: max 120m/min
  • Back-twist ratio: 0 – 100%
  • Pitch range: 10 – 60mm
  • Pitch tolerance: ±.2%
  • Main power: 5.5KW
