Copper wire drawing and core wire extrusion

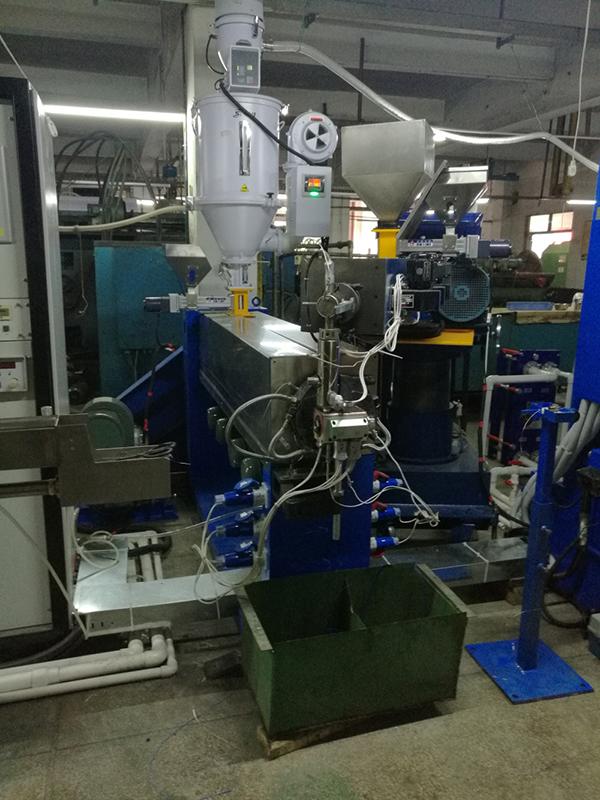

Lan cable extruder Line is suitable for extrusion of CAT5E, CAT6, CAT6A core wire.

• Inlet diameter:(maxφ3.0mm)
• Outlet diameter: φ0.4 mm-φ0.9 mm
• Insulation materials: HDPE/LDPE
• Insulation thickness:0.15-0.4mm
• External diameter: 0.6 – 1.5mm
• Line speed: Max: 1500m/min
• Insulator concentricity: ≧95%
• External diameter deviation of insulator: ±<0.005 mm
• External diameter deviation of conductor: ±＜0.002mm
• Copper wire elongation after annealing:18-25％

1. L250-21 Copper Wire Drawing Machine
2. TH800 Annealer
3. High Frequency Preheater
4. Extruder
5. Automatic Color Masterbatch Mixer
6. 35mm Strip Extruder
7. Water Tank

8. Capstan Device
9. Drawing Oil Cooling Circulation Device
10. Sparker Tester
11. Diameter Gauge
12. Automatic Double Reel Winder
13. Electric Control System
